700W 1000W cnc máquina de corte para aço inoxidável aço carbono ferro metal

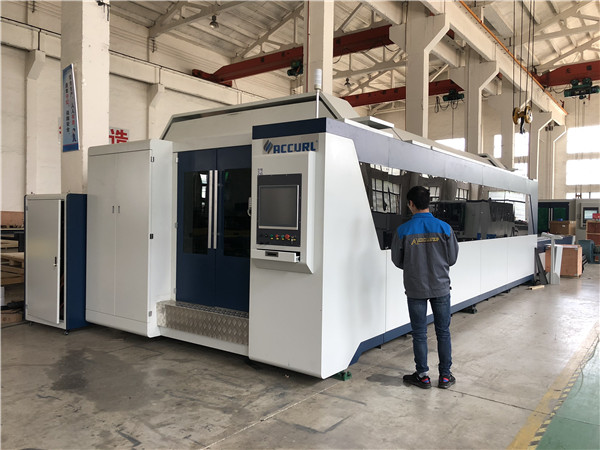

High speed 700W 1000W CNC Fiber Laser Cutting Machine For Stainless Steel Carbon Steel Iron Metal

Especificações


Área de corte: 1300 * 2500mm
Velocidade de corte: 25m / min
Formato gráfico suportado: AI
Aplicação: Corte a Laser
Condição: Nova
Cutting Thickness:2mm ss, 4mm cs, 2mm gs
CNC ou não: sim
Modo de Refrigeração: Refrigeração a Água
Control Software:Shanghai WEIHONG
Lugar de origem: Anhui, China (continente)
Marca: ACCURL
Certificação: CE
Garantia de 1 ano
Tipo de laser: laser de fibra
Laser power:200W 300W
Applicable material:stainless steel, carbon steel, galvanized sheet, iron
Max cutting thickness:2mm ss, 4mm cs, 2mm gs, 2mm iron
Running speed:Max 25m/min
Position precision:≤0.1mm
The max load for worktable:300KG
Machine weight:1.5T
Working power:≤1800W, 220V, 50/60HZ, 3 phase

Descrição do Produto


This machine is designed for advertising to cut metal including 0-2mm stainless steel, 0-4mm carbon steel, 0-2mm galvanized sheet and 0-2mm iron.



It applies Taiwan PMI ball screw, YYC gear and rack as the transmission and Shanghai WEIHONG servo motors as the drive.

The 1.5t weight machine body and our advanced technique makes the machine run very stably when it runs at high speed.



Above all, the economical but good quality machine is very suitable for ad industry clients to cut thin metal for making channel letters.

1. Configuração

CNC Control system

Shanghai WEIHONG

Operating software

Lasercut

Gerador de laser

China Maxphotonics

Cabeça de laser

China WSX

Dirigir

Double Shanghai WEIHONG servo motors

Transmissão

Taiwan HIWIN linear rail, YYC gear and rack

Laser lens and mirror

USA II-VI

Accessory

Water chiller CW-6000, Exhaust device, Protective mirror

Optional device

Rotary axis to cut round or square pipe

2. Technical parameters

Cor

White & Yellow (can be changed as per your request)

Tipo de laser

Laser de fibra

Potência do laser

200W or 300W

Material aplicável

stainless steel, carbon steel, galvanized sheet, iron

Espessura máxima de corte

2mm ss, 4mm cs, 2mm gs, 2mm iron

Running speed

Max 25m/min

Max acceleration

0.8G

Stroke of X axis

1300mm

Stroke of Y axis

2500mm

Stroke of Z axis

70mm

Precisão posição

≤0.1mm

The max load for worktable

300KG

Peso da máquina

1.5T

Working power

≤1800W, 220V, 50/60HZ, 3 phase

Gás auxiliar

Oxygen or Nitrogen

3. Features

Machine worktable is milled by CNC milling machine which ensures the worktable on the same level and deviation within 0.01mm. It won't be out of shape during a long time.

Nosso serviço




1. The whole machine we offer one year guarantee time free, without consumable parts replacement and man-made fault

2. User-friendly English manual and video CD for machine using and maintaining

3. My company English software can do all kinds of pattern recognition,software upgrading and updating free

4. You are the one we CARE ABOUT!We always offer you our best service no matter when and where

Perguntas frequentes


1.What are the other characteristics of the machine besides high cutting speed ?Can it carve small chest card ?
Large power ,processing power smooth operation .It can carve small chest card

2.Can it carve both wood and metal ? Can it cut or relief ?
Yes, it depends on metallic materials .It can carve wood , aluminum ,cooper and iron with the machine and sink .it can cut and relief

3.Does it work stability ?Will there be small problems ? Is it suitable for a long time work .

Yes , stable work .there won't be any problems It is suitable for a long time work .security performance.

Reasonable structure.

4.What ‘s the other auxiliary equipment? Will you give me polishing machine with the engraving machine .
Computer and processing equipment .We can provide free polishing machine if the price is reasonable.

5.Is engraving machine spindle coolong method water cooling or air cooling ? Are there dust cover or industry vacuum cleaner ?
Generally speaking .water cooling for advertising . woodworking engraving for air cooling .According to custom’s request .We can provide the dust cover and industry vacuum cleaner with the machine .But you have to pay for it .

6.What is in the need of maintenance? What kind of lubricating oil is suitable ?
The transmission part .the rail section .We suggest to use sewing machine oil to clean spindle .

7.What ‘s the other auxiliary equipment ?
We suggest the machine equipped suitable SPB regulator .Prevent summer lighten.It’s easy to follow processing .to prevent the damage caused by the machine’s instability

8 .What’s the difference between screw carving and rack carving .

DifferenceScrew carvingRack carving
TransmissãoScrewRack
RapidezSlowFast
Processing plateSmall powerLarge power
Processing accuracyHighlow



9 .What’s the difference between circular rail carving machine and square rail carving machine ?

DifferenceCircular rail carvingSquare rail carving
Operation guideCircular railSquare rail
The sliderCircularSquare
AccuracylowAlto
